Description:
EUBO F18A Dry Film Oil is a lubricant containing PTFE (polytetrafluoroethylene) solid lubricant particles, which provides cleaning action while lubricating. After solvent evaporation, the dry surface consists of PTFE lubricant particles with an extremely low friction coefficient, does not attract dust, and offers excellent lubrication and damping performance.
Key Advantages / Features:
-
Wide operating temperature range: -50°C to 150°C
-
Excellent lubrication performance; long service life, maintenance-free
-
Short drying time; no flash point, no auto-ignition
-
Chemically stable: does not react with oxygen, including liquid oxygen, and does not age
-
High temperature stability: low volatility, no loss, no carbon deposition, no sediment, no migration
-
Resistant to steam, strong acids, strong bases, and over 2,000 chemicals
-
Excellent material compatibility and electrical insulation
-
Chemically inert; insoluble in water and most solvents
-
Applied to metal parts: good water resistance and anti-rust protection
-
Non-toxic, odorless, non-irritating; complies with EU environmental certifications: RoHS, PFOS-free, and halogen-free
Application / Usage Instructions:
-
Apply by brushing or dipping.
-
Clean the surface before application and allow it to dry.
-
Apply in a well-ventilated area; once dried, the film has no adverse effects.
Packaging Specifications:
-
6 kg per box
-
1 kg per drum
Storage Conditions:
-
As a volatile product, seal the container immediately after use and store in a cool, dark place.
-
Keep away from heat sources.
-
Strictly avoid contact with oxidizers, strong acids, and alkaline substances.
Precautions / Safety:
-
Contains solvents; ensure adequate ventilation during use.
-
Wash hands before eating, drinking, or smoking after use.
-
May irritate skin or eyes; wear necessary personal protective equipment.
-
In case of contact with skin or eyes, rinse thoroughly with water and seek medical attention if necessary.
-
Wash hands thoroughly after handling.
Limited Warranty – Please Read Carefully:
The information provided is accurate to the best of our knowledge. However, since use conditions and methods are beyond our control, this information cannot replace customer testing to ensure the product’s safety, effectiveness, and suitability for specific end uses. Recommendations do not imply infringement of any patent rights.
Safety Information Notice:
This document does not include all safety information required for the use of this product. Before use, read the product safety data sheet (MSDS/SDS) and container label for details on safe handling and health hazards.
Applications :
-
Lubrication of tray rails in CD-ROM and DVD-ROM drives.
-
Lubrication of telescopic lenses and internal mechanisms in cameras, camcorders, and optical instruments.
-
Friction lubrication for plastic components where conventional wet lubricants are unsuitable.
Technical Parameters of Dry Film Oil F18A
Item |
Specification / Value |
Unit / Notes |
Product Name |
F18A |
— |
Appearance |

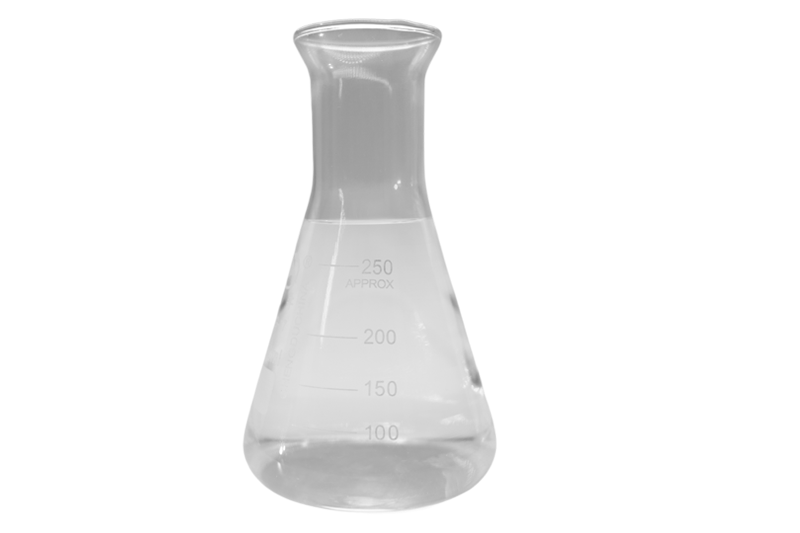

White liquid |
— |
Base Oil Viscosity (40°C) |
60 |
cSt |
Specific Gravity |
1.4 |
— |
Flash Point |
None |
°C |
Operating Temperature |
-50 ~ 150 |
°C |
Treated Surface |
Slightly moist |
— |
Shelf Life in Air |
4 |
years |
Ozone Depletion Potential (ODP) |
0 |
— |
Global Warming Potential (GWP, CO2=1) |
600 |
— |
Notes:
-
The product appearance may vary slightly due to differences in raw materials.
-
For compatibility with rubber, plastics, and other materials, please refer to the compatibility chart.
