Product Category:Conductive grease

Product Features: Product Features: EUBO ES2 Conductive Grease is made with low-viscosity PAO and contains conductive carbon black as a solid conductive medium, effectively discharging static electricity. It does n...

Hotline:13316998426
Product Features

Product Features:

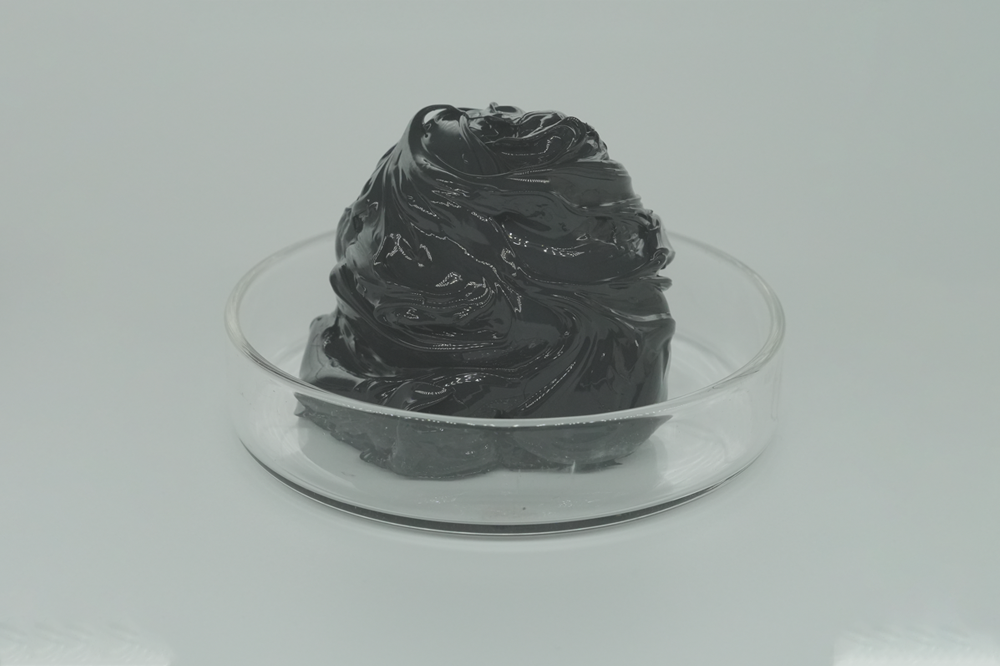

EUBO ES2 Conductive Grease is made with low-viscosity PAO and contains conductive carbon black as a solid conductive medium, effectively discharging static electricity. It does not carbonize, and its special synthetic base oil ensures excellent conductivity.

Key Advantages / Features:

  1. Made from low-viscosity PAO.

  2. Contains conductive carbon black to efficiently dissipate static electricity.

  3. Does not carbonize; special synthetic base oil provides excellent conductivity.

  4. Enhances lubrication and reduces copper wear.

  5. Good water resistance, compatible with plastics, and non-corrosive to metals.

Usage Instructions:

  • Apply or fill the grease using a brush, spatula, or automatic lubrication device, similar to standard lubricants. Ensure the workpiece surface is clean to avoid oxides, dust, or oil contamination that could affect adhesion.

  • Packaging: 6 kg/box (1 kg/can).

  • Storage Instructions:

    • Seal the container after use to prevent contamination.

    • Store in a cool, dry place.

    • Avoid contact with oxides, strong acids, and alkaline substances.

Precautions:

  • Stir well before use, apply the proper amount, and smooth after application to prevent oil separation.

  • Ensure good ventilation during operation.

  • Regularly replenish and replace the grease as needed.

  • Wash hands thoroughly after contact and before eating.

  • Maintain cleanliness during use to prevent contamination by dust, water, mechanical debris, or other solvents.

  • Do not mix greases of different brands or types.

Important Information – Please Read Carefully:
The information provided is believed to be accurate. However, since conditions and methods of use are beyond our control, this information cannot replace customer testing to ensure the product is safe, effective, and fully suitable for the intended application.
The recommendations provided should not be construed as infringing any patent rights.
This document does not include all safety information required for safe use. Before use, please read the product, its safety data sheet (SDS), and container labels for information regarding safe handling and potential health hazards.

Application scope

Application Range of ES2 Conductive Grease:

Designed for areas requiring static dissipation in products such as printer cartridges and treadmills, effectively protecting the components from electrostatic discharge (ESD) damage.

Product parameters

Technical Parameters of Printer Conductive Grease ES2

Test Item

Specification / Value

Test Method / Standard

Appearance

Black

Visual Inspection

State / Form

Homogeneous grease

Visual Inspection

Consistency Grade (NLGI)

2

ISO 6743-99

Working Cone Penetration (25°C, 0.1 mm)

265–295

ASTM D 217

Oil Separation (100°C × 30h, wt%)

≤5.0

ASTM D 6184

Copper Corrosion (100°C × 24h)

Pass

ASTM D 130

Evaporation Loss (99°C × 22h, wt%)

≤0.3

ASTM D 972

Recommended Operating Temperature (°C)

-40 to 180

Environmental Certifications

RoHS, REACH, Halogen-Free, 17P, EN71-3, PAHs

Shelf Life (years)

6

Remarks:
1.The appearance of the product may vary slightly due to raw material differences.
2.Compatibility with rubber, plastics, and other materials should be referred to the compatibility table.
