Product Category:PUR Adhesive

Product Features: Product Features: Reactive polyurethane hot melt adhesive (PUR) is solid at room temperature and must be melted by heating before dispensing. It is a single-component, solvent-free hot melt struct...

Hotline:13316998426
Product Features

Product Features:
Reactive polyurethane hot melt adhesive (PUR) is solid at room temperature and must be melted by heating before dispensing. It is a single-component, solvent-free hot melt structural adhesive that achieves high initial bonding strength through physical solidification. Subsequently, moisture from the environment (substrate or air) triggers a chemical crosslinking reaction, converting the adhesive into an elastomer. After curing, it provides stronger bonding strength and exhibits excellent moisture resistance, heat resistance, and chemical resistance. It combines the environmental friendliness and rapid bonding of hot melt adhesives, the high strength of reactive adhesives, the elasticity of polyurethane adhesives, and performance under high and low temperatures. Due to its high reactivity and excellent adhesion to various substrates, it is highly versatile.

Pretreatment:

1)Preheat the adhesive at 120–130 °C for 20–30 minutes.

2)Surfaces to be bonded must be clean, dry, and free of oil or grease.

3)Recommended dispensing temperature: 130 °C; air pressure: 2–6 bar; nozzle size: #19–23. Higher temperature and air pressure increase dispensing volume. Purge 25 px of adhesive before dispensing.

4)The adhesive has slight pressure-sensitive properties, providing a relatively long assembly time.

Cleaning:
1)After dispensing, allow the adhesive to cool to room temperature before removing excess material from the edges.

2)Any uncured residue can be removed with a blade.

3)When wiping the dispensing area, ordinary cleaning solvents (e.g., toluene, acetone) can be used. Residue should be cleaned before the adhesive cures.

Precautions:

1)Do not repeatedly heat the adhesive. Once opened, it should be used within 48 hours. Total heating time should not exceed 48 hours.

2)The working temperature should not exceed 140 °C.

3)Take care to avoid burns.

Important: Please read the instructions carefully to ensure proper use.

Storage and Shelf Life:

1Store the product in vacuum-sealed aluminum foil bags in a dry environment at 15–25 °C.

2The shelf life of unopened product is 6 months.

Health and Safety:

1Refer to the Material Safety Data Sheet (MSDS) for proper handling and disposal instructions.

2The information provided is accurate to the best of our knowledge. However, since the conditions and methods of use are beyond our control, this information does not replace the customer’s own testing to ensure the product’s safety, effectiveness, and suitability for the intended application.

3Usage recommendations should not be considered as guidance on patent rights.

4This document does not include all safety information needed for safe use. Before use, read the product label and MSDS for information on safe handling, health hazards, and protective measures.

Application scope
Applications:

Widely used for assembly and bonding in automotive headlights, mobile phones, and smart wearable devices.

Product parameters

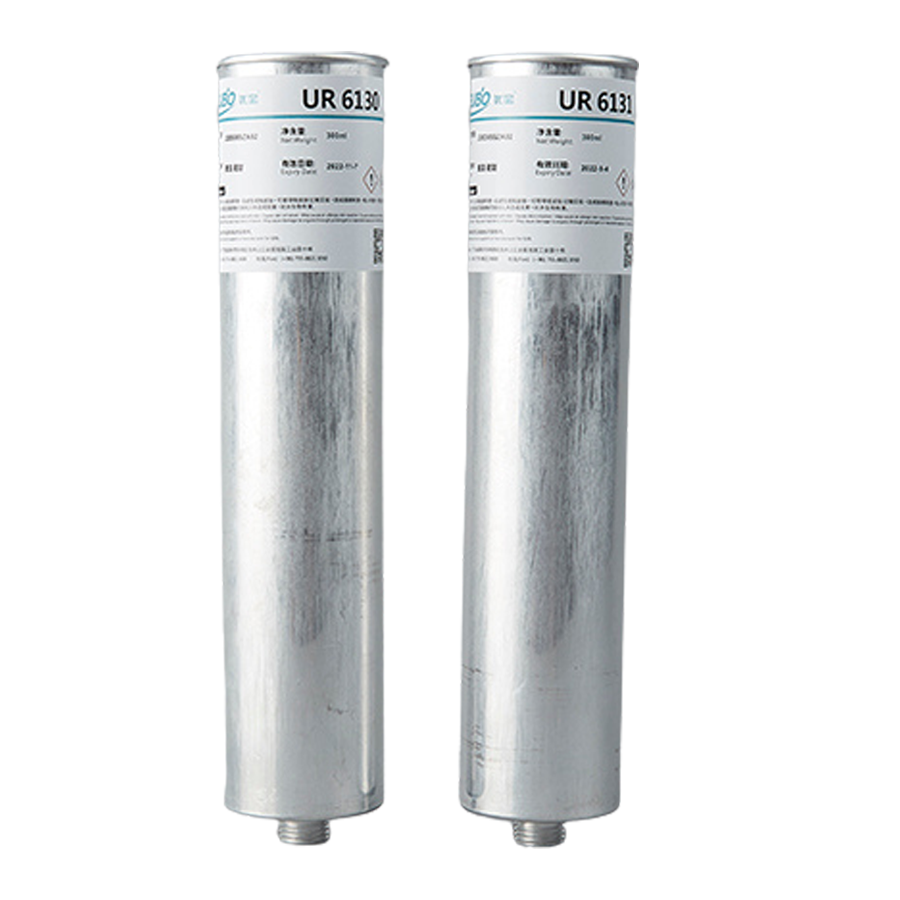

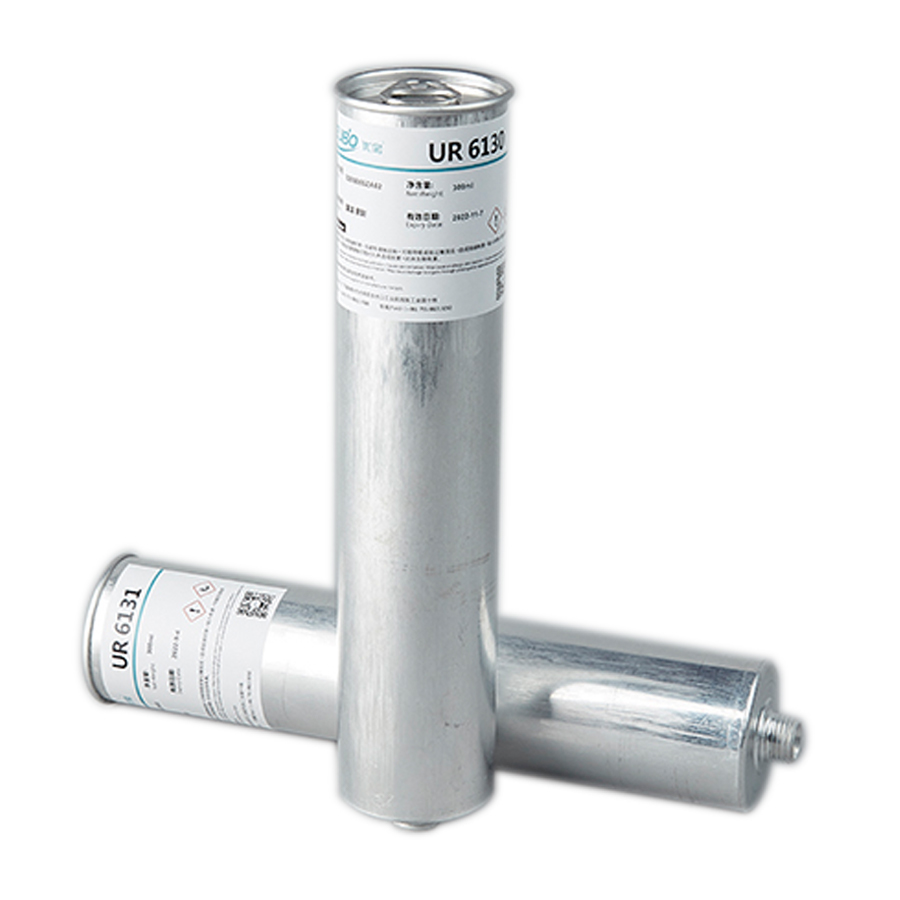

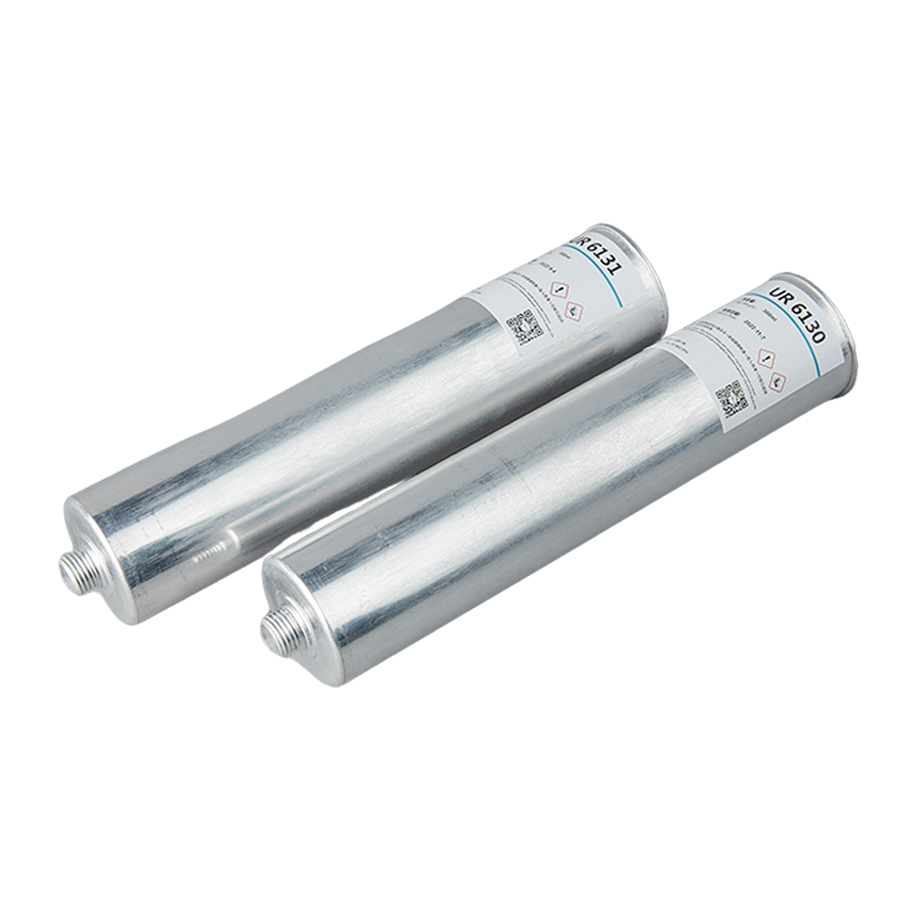

UR 6131 Hot Melt Adhesive — Technical Data

Product

UR 6131

Application

Pouch Cell Edge Folding

Appearance

Light yellow

Viscosity

8000~10000 mPa·s @ 170

Open Time

3~5 min

Curing Conditions

3d @ 25℃

Hardness

80A

Shear Strength

8MPa

Elongation at Break

800%

Storage Conditions

6 months@25℃
