Product Description:
-

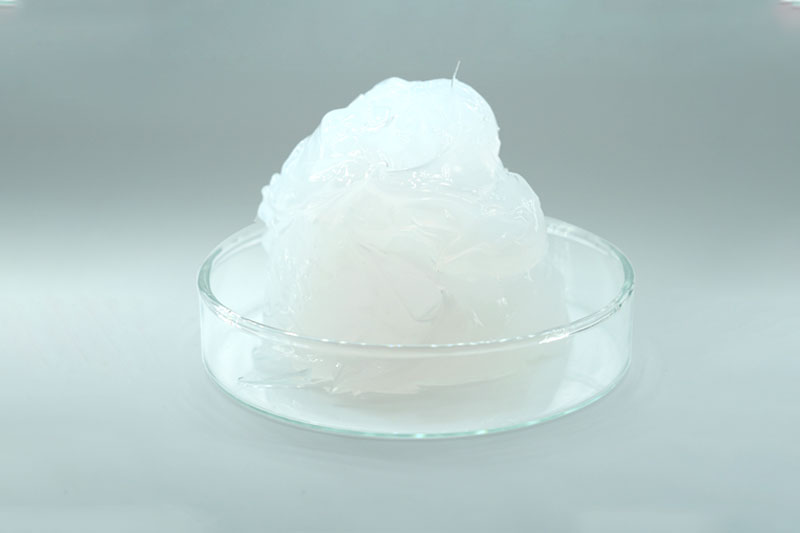

Appearance: White
-
Base Oil Viscosity (cst):
-
100°C: 100 (GB/T 265-88)
-
40°C: 1000
-
-
Hardness: 2 (NLGI)
-
Thickener: Complex lithium soap
-
Penetration (0.1mm): 265–295 (GB/T 269-91)
-
Operating Temperature Range: -40°C to 160°C
-
Drop Point: >260°C (GB/T 3498-08)
-
Oil Separation (wt%): 0.8 (NB/SH/T 0324-2010)
-
Environmental Certifications: ROHS, CH Halogen 19P, EN71
-
Shelf Life (years): 6
Key Features:
-
High cost-effective grease
-
Low-temperature semi-synthetic grease with excellent performance
-
Compatible with most plastics
-
Effectively reduces noise from plastic gears, extending service life
-
Low seepage, suitable for clean environments
-
Free of silicones, avoiding contact failure
Application Recommendations:
-
Used in automotive, electrical equipment, precision devices, audio-visual equipment, and office equipment with plastic components.
-
Used on plastic gears and metal sliding parts.
-
Used as a noise-reducing grease to minimize noise from moving components such as gears.
-
Suitable for automotive door locks, sunroofs, and other similar applications.
Technical Parameters of Automotive Window Regulator Grease C400
Test Item |
Measured Value |
Test Method |
Appearance |
White |
— |
Base Oil Viscosity (cst) |
100°C: 100 |
GB/T 265-88 |
40°C: 1000 |
||
Hardness |
2 |
NLGI |
Thickener |
Complex lithium soap |
— |
Penetration (0.1mm) |
265–295 |
GB/T 269-91 |
Operating Temperature Range (°C) |
-40~160 |
— |
Drop Point (°C) |
>260 |
GB/T 3498-08 |
Oil Separation (wt%) |
0.8 |
NB/SH/T 0324-2010 |
Roll Stability (0.1mm) |
50 |
SH/T 0122-92 |
Copper Strip Corrosion |
1b |
GB/T 5096-85 |
Infrared Absorption Spectrum |
Infrared Spectrum 20120416002 |
GB/T 6040-02 |
Harmful Substances |
X-ray Fluorescence Spectrum 20120416002 |
IEC 62321-6 |
Environmental Certifications |
ROHS, REACH, Halogen 19P, EN71 |
|
Shelf Life (Years) |
6 |
— |
