Description:

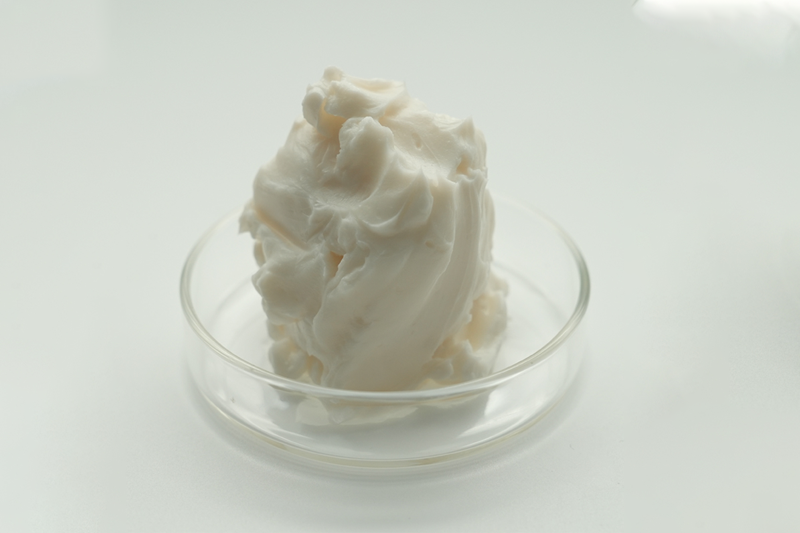

EUBO SS5 Ball Joint Grease is based on synthetic oils, non-toxic, and compliant with environmental regulations. It provides excellent sealing, lubrication, and water resistance.
Advantages / Features:
-
Made with high-viscosity silicone oil.
-
Excellent high and low temperature performance with minimal variation; operating temperature range: -50°C to 200°C.
-
Outstanding corrosion resistance, thermal stability, and chemical stability.
-
Good compatibility with most plastics and elastomers.
-
Extremely low volatility.
-
Excellent sealing, lubrication, and water resistance.
-
Entirely based on synthetic oils, non-toxic, and environmentally friendly.
-
Usage Instructions:
-
Apply or fill the grease using a brush, spatula, or automatic lubrication device, similar to standard lubricants.
-
Ensure the surface of the workpiece is clean to avoid oxides, dust, or oil contamination, which could affect adhesion.
-

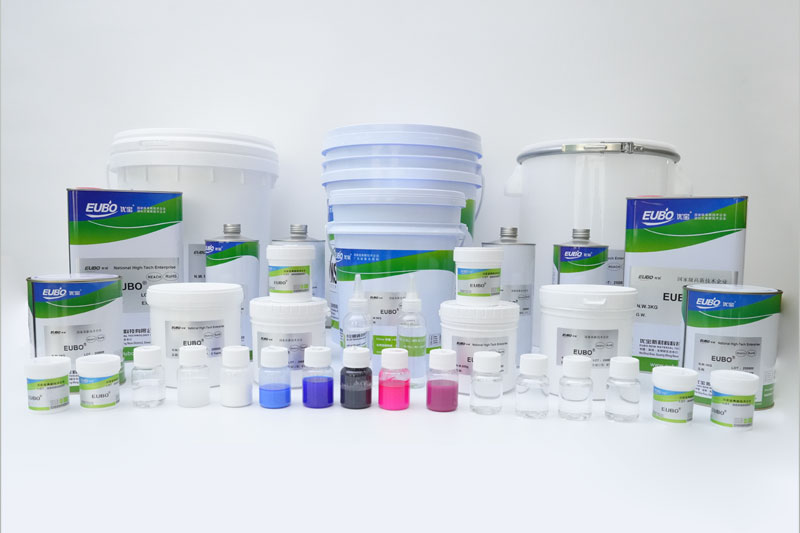

Packaging: 18 kg per drum
Storage Instructions:
-
Seal the container after use to avoid contamination.
-
Store in a cool, dry place.
-
Avoid contact with oxides, strong acids, and alkaline substances.
-
Precautions:
-
Although SS5 grease is highly chemically stable, it will gradually decompose and release toxic gases at temperatures above 350°C. Ensure proper ventilation if degradation is expected.
-
Wash hands thoroughly after contact, especially before smoking or eating.
-
Important Information – Please Read Carefully:
-
-
The information provided herein is believed to be accurate. However, since the conditions and methods of using our products are beyond our control, this information cannot replace customer testing to ensure the product is safe, effective, and fully suitable for the intended application.
-
The recommendations provided should not be construed as infringing any patent rights.
-
This document does not include all safety information required for safe use. Before use, please read the product, its safety data sheet, and container labels to obtain information regarding safe handling and potential health hazards.
-
-
Application Scope of SS5 Ball Joint Grease:
-
Lubrication and sealing of friction surfaces, spools, ball joints, valves, plugs, gaskets, O-rings, and wedge-type seals in high and low temperature environments, requiring excellent water resistance.
-
Sealing rings and dynamic or static seals in various toys and electrical appliances, providing good sealing performance.
-
Lubrication of plastic toy gears to reduce noise.
-
Long-term lubrication in applications requiring low starting torque at low temperatures, such as electronic clocks, cameras, optical instruments, conveyors, refrigerator fan bearings, portable freezing equipment, and servo mechanism gears.
Technical Parameters of Automotive Ball Joint Grease SS5
Test Item |
Specification / Value |
Test Method / Standard |
Recommended Operating Temperature |
-40–200°C |
— |
Thickener |
PTFE |
— |
Base Oil Type |
Dimethyl Silicone Oil |
— |
Kinematic Viscosity @ 100°C (cSt) |
8050 |
GB 265-88 |
Kinematic Viscosity @ 40°C (cSt) |
20100 |
GB 265-88 |
Flash Point (°C) |
> 300 |
GB/T 3536-08 |
Pour Point (°C) |
< -40 |
GB/T 3535-06 |
Appearance |
White |
— |
Cone Penetration (0.1 mm) |
265–295 |
GB/T 269-91 |
Consistency Grade |
2 (NLGI) |
NLGI |
Density (g/cm³) |
1.23 |
— |
Oil Separation (wt%) |
0 |
NB/SH/T 0324-2010 |
Evaporation Loss (wt%) |
<0.05 |
GB/T 7325 |
Water Resistance (wt%) |
0.25 |
SH/T 0109-04 |
Dynamic Viscosity (Pa·s) |
240 |
— |
