UV 5110 is designed for sealing and bonding the frames of OLED displays. It protects OLED devices from contamination, moisture, and oxygen, while ensuring that the adhesive itself does not cause contamination. This series of products features low curing temperature, minimal residual curing agents, low volatile residues, strong adhesion, water-boil resistance, and excellent moisture and oxygen barrier properties.
Storage and Shelf Life:
The product should be stored in vacuum-sealed aluminum foil bags in a dry environment at 15–25°C. The shelf life of unopened products is 6 months.
Health and Precautions:
Please refer to the Material Safety Data Sheet (MSDS) for proper handling and disposal instructions.
Important Information – Please Read Carefully:
The information provided herein is believed to be accurate. However, since the conditions and methods of using our products are beyond our control, this information cannot replace customer testing to ensure the product is safe, effective, and fully suitable for the intended application.
The recommendations provided should not be construed as infringing any patent rights. This document does not include all safety information required for the safe use of this product. Before use, please read the product, its safety data sheet, and container labels to obtain information regarding safe handling and potential health hazards.

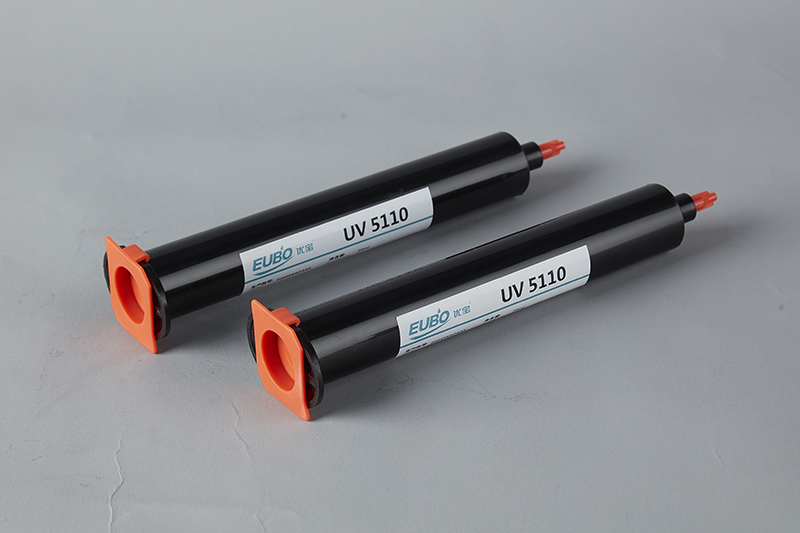

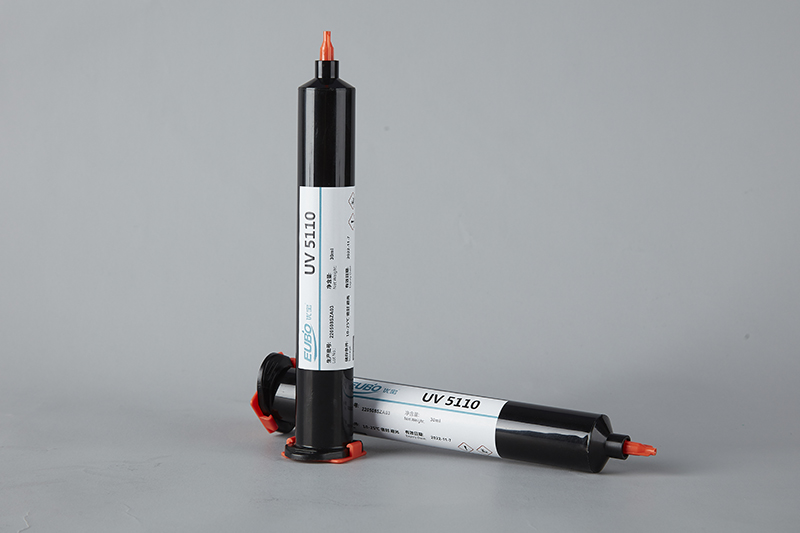

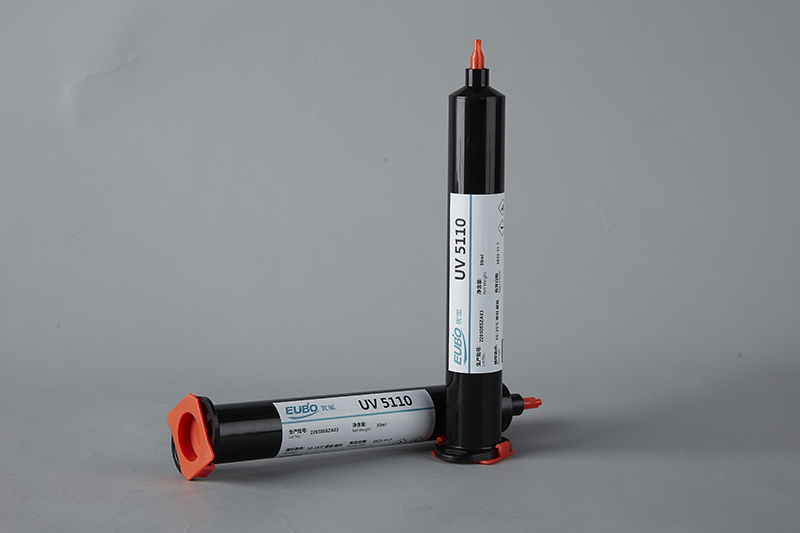

Technical Parameters of Frame Sealing Adhesive UV 5110
Property |
Specification |
Product |
UV 5110 |
Application |
OLED / E-Paper Edge Sealing |
Appearance |
Light yellow |
Viscosity |
1000 mPa·s |
Glass Transition Temperature (Tg) |
76°C |
Hardness |
70D |
Shear Strength |
15 kg (PET/Glass, 4 × 4 mm) |
Curing Conditions |
2000 mJ/cm² (395 nm) |
Storage Conditions |
6 months @ 25°C |
